KDDIlabs NLA1 Activity Report 2001

2002/1/29
Yuichiro Hei
KDDI R&D Laboratories Inc.

Network Name

KDDILABS

History

2001/3
Install the IPv6 gateway router at KDDI Otemachi.
Connect between Otemachi and Kamifukuoka(the location of KDDIlabs office) by IPv6 native link(100Mbps Ethernet).
Connected to NSPIXP-6.
BGP4+ peering with WIDE, TTNet, and APAN-JP was established on NSPIXP-6.
2001/4
BGP4+ private peering with KDDI was established.
2001/5
BGP4+ peering with OPENTRANSIT was established on NSPIXP-6.
2001/6
BGP4+ peering with INTEC was established on NSPIXP-6.
2001/7
BGP4+ peering with DTI, SONYTELECOM, IMNET and MCNET was established on NSPIXP-6.
2001/9
BGP4+ peering with MEX, PanaNet was established on NSPIXP-6.
Our official web page (www.kddilabs.jp) was ready to IPv6.
2002/1
BGP4+ peering with V6PC and JGNv6 was established on NSPIXP-6.

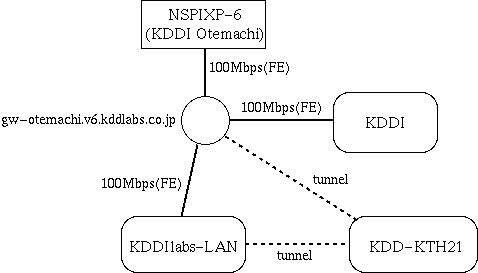

Network Topology

Routing

BGP4+ for public peering on NSPIXP-6 and private peering with KDDI.
BGP4+ for downstream site (KDD-KTH21) via tunnel.
RIPng and static for internal.

Address Assignment

2001:200:600::/48	---	reserved
2001:200:601::/48	---	KDDIlabs-LAN
2001:200:602::/48	---	KDD-KTH21
2001:200:603::/48	---	HITACHI-V6NSI(expired)
2001:200:604::/48	---	DV/Windows experiment network

Traffic

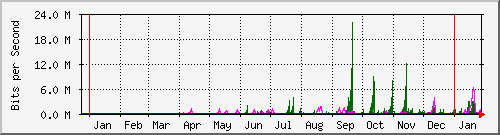

The below graph illustrates the link utilization between gw-otemachi.v6.kddlabs.co.jp and KDDIlabs-LAN measured by MRTG. Dark green line indicates the maximal 5 minutes traffic from KDDIlabs-LAN, and magenta line indicates the maximal 5 minutes traffic to KDDIlabs-LAN.
