IMASY NLA1 Report 2000
Network Name
IMASY (Internet Mutual Aid Society, YOKOHAMA)
History
- IPv4 serve start at 1995/4
- One of Internet Mutual Aid Societies
- 800 IPv4 people
- IPv6 connected to 6bone-jp at 1998/2
- NLA1 of WIDE pTLA (3ffe:505::/32)
- Connectivity service (IMASY<->home) start at 1998/6
- 15 IPv6 people = 1.9%
- CVSup mirror start at 1998/7
- KAME, FreeBSD
- but still IPv4 only ;-)
- PAO+KAME CVS Repository Tree service start at 1998/8
- easy to track current source from laptop
- support CVSup based updating
- Obtain NLA1 of WIDE sTLA at 2000/1
- 2001:200:300::/40
- DTCP (Dynamic Tunnel Configuration Protocol) service start at 2000/6
- tunnel type `tunnelroute' has been added
- 5 sites are connected using DTCP
- include CATV, FLET's ISDN and dialup
- Updated from FreeBSD 3.5-RELEASE + KAME to FreeBSD 4.2-RELEASE at 2000/11

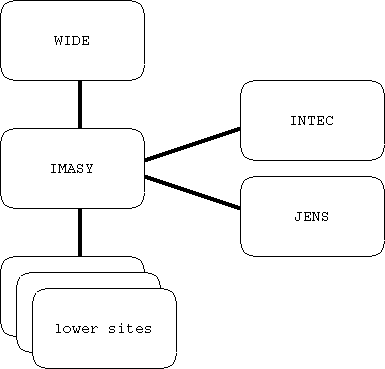

Nwtwork topology
- 3ffe:505::/32 and 2001:200:300::/40 are assigned.
- Our upstream is gif tunnel to pc6.otemachi.wide.ad.jp.
- We have connection to INTEC and JENS which are NLA1 holder.
- All of our neighbor are connected via gif tunnel.
- DTCP is available to connect to IMASY for whos don't have fixed IPv4 global address.
This saves CATV, FLET's, dialup and mobile users.
Routing
- BGP4+ for externel and internal
- RIPng for internal
- static routing for dialup or DTCP users
Address assignment
We have been allocated NLA2 mainly individual sites.
- 3ffe:505:N::/48 from 3ffe:505::/32
- 52 sites (include 5 sites returned)
- 2001:200:3nn::/48 from 2001:200:300::/40
- 2 sites
Trouble
- IPv6 over IPv4 tunnel was blocked by NAT
- Many people suffered this problem.
- Nat facility provided by FreeBSD's userland ppp is trouble-maker.
It seems working fine with ppp and ipnat combination.
- IPv6 over IPv4 tunnel was not established
- Some version of FreeBSD 3.5-RELEASE + KAME broke IPv6 over IPv4 tunnel.
We did update the router to 4.2-RELEASE and this problem was gone.
Contact
- IMASY-6bone Web page
- http://www.v6.imasy.or.jp/
- IPv6 address request and comment
- ipv6-contact@imasy.or.jp
