APAN-JP IPv6 Address Report

Network Name

APAN-JP

History

Apr 2000		The IPv6 router (Cisco 7505) was installed at APAN Tokyo-XP in KDDI Otemachi Bldg.
May 2000		APAN-JP was assigned sNLA1 address block (2001:200:900::/40) by WIDE.
		Tunnel to KDDlabs was established.
Sep 2000		BGP4+ peering with KOREN (Korea Research and Education Network) was established.
		Our IPv6 router was connected to NSPIXP6, and BGP4+ peering with WIDE via NSPIXP6 was established.
Oct 2000		Our WWW server became IPv6-ready (www.jp.apan.net).
Dec 2000		BGP4+ peering with KDDI, RADIX, TTNet, Sony and So-net via NSPIXP6 was established.

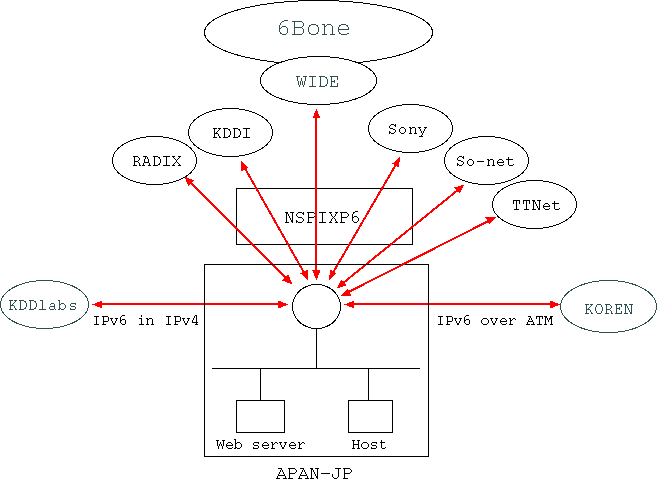

Network Topology

Routing

We established BGP4+ peering with WIDE via NSPIXP6, and received full routes from WIDE. The routing with other organizations is as follow.

Organization Link Routing Protocol Advertised Routes Received Routes

KOREN ATM BGP4+ 2001:200:900::/40 2001:220::/35, 2001:230::/35, 3ffe:2e00::/24, 3ffe:8040::/28

KDDlabs Tunnel BGP4+ 2001:200:900::/40 2001:200:600::/40, 3ffe:501:1828::/48

KDDI Ether(NSPIXP6) BGP4+ 2001:200:900::/40 2001:268::/35

RADIX Ether(NSPIXP6) BGP4+ Full TLA routes None

TTNet Ether(NSPIXP6) BGP4+ 2001:200:900::/40 2001:2a0::/35, 3ffe:50c::/32

Sony Ether(NSPIXP6) BGP4+ 2001:200:900::/40 2001:298::/35

So-net Ether(NSPIXP6) BGP4+ 2001:200:900::/40 3ffe:50f::/32

Address Assignment

2001:200:900::/48 -- reserved
2001:200:901::/48 -- APAN Tokyo-XP segment

hei@kddlabs.co.jp

Organization	Link	Routing Protocol	Advertised Routes	Received Routes
KOREN	ATM	BGP4+	2001:200:900::/40	2001:220::/35, 2001:230::/35, 3ffe:2e00::/24, 3ffe:8040::/28
KDDlabs	Tunnel	BGP4+	2001:200:900::/40	2001:200:600::/40, 3ffe:501:1828::/48
KDDI	Ether(NSPIXP6)	BGP4+	2001:200:900::/40	2001:268::/35
RADIX	Ether(NSPIXP6)	BGP4+	Full TLA routes	None
TTNet	Ether(NSPIXP6)	BGP4+	2001:200:900::/40	2001:2a0::/35, 3ffe:50c::/32
Sony	Ether(NSPIXP6)	BGP4+	2001:200:900::/40	2001:298::/35
So-net	Ether(NSPIXP6)	BGP4+	2001:200:900::/40	3ffe:50f::/32
